Ammann APF 25/50 Vibratory Plate Technical Data
The right fit on your jobsite

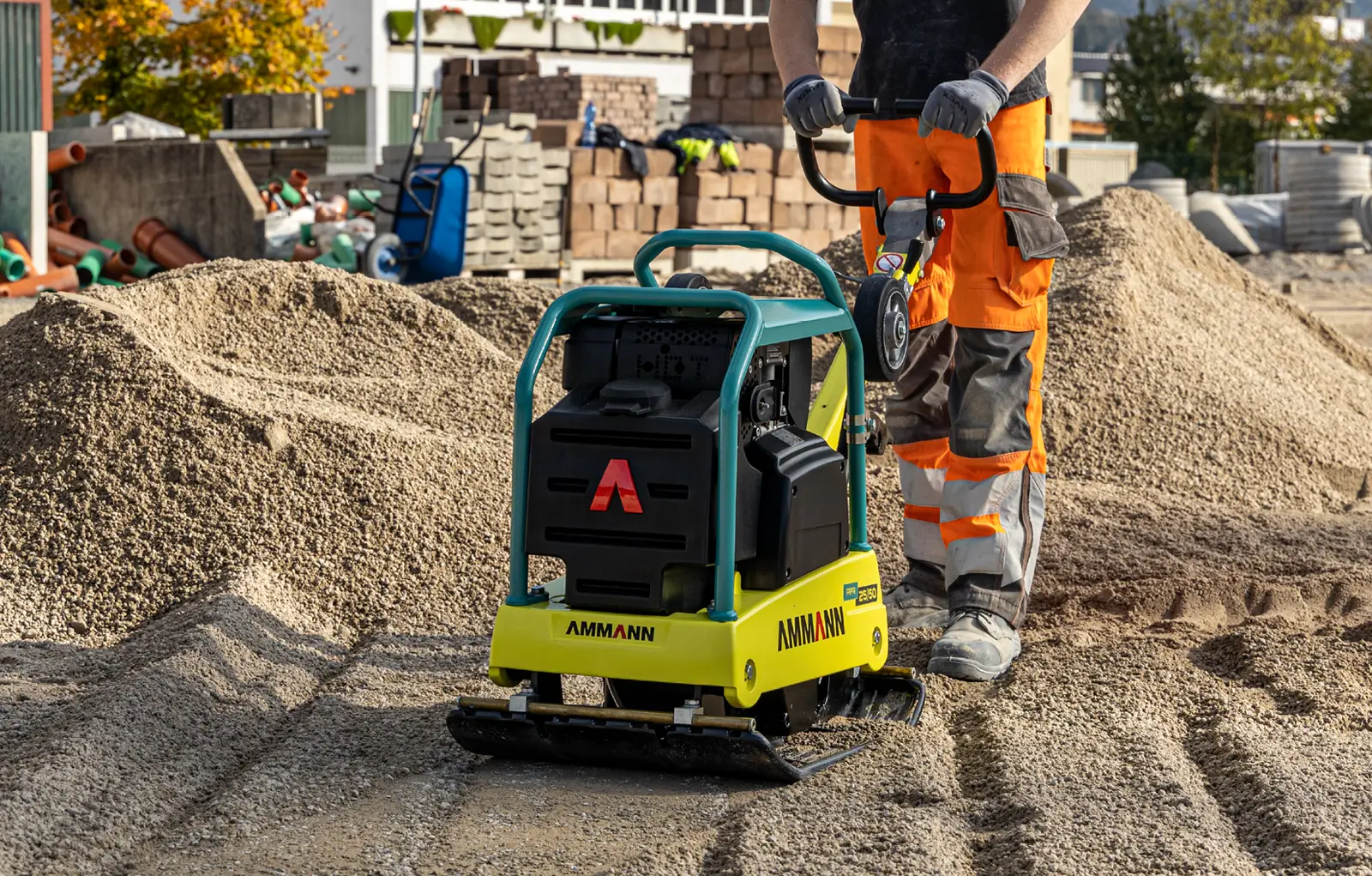

The line of APR Reversible Vibratory Plates, engineered to be extremely productive on varied jobsites, is among the fastest in its class. The plates are reliable performers, even when working on difficult terrain and with challenging materials. A wide range of options provides versatility. The plates can switch between soil and asphalt compaction in minutes.
| Weight & Dimensions | APR 25/50 Diesel | APR 30/60 Diesel | APR 30/60 Petrol | APR 40/60 Diesel | APR 40/60 Petrol | ||||
|---|---|---|---|---|---|---|---|---|---|
| Machine Weight | 135 kg (298 lb) |
215 kg (474 lb) |
199 kg (439 lb) |
269 kg (593 lb) |
263 kg (580 lb) |
||||
| Max Machine Weight (Including Options) |
146 kg (322 lb) |
243 kg (536 lb) |
213 kg (470 lb) |
284 kg (625 lb) |
– | ||||
| Base Plate Length | 330 mm (13 in) |
330 mm (13 in) |
330 mm (13 in) |
410 mm (16.1 in) |
410 mm (16.1 in) |
||||
| Machine Length | 700 mm (27.6 in) |
700 mm (27.6 in) |
700 mm (27.6 in) |
860 mm (33.9 in) |
860 mm (33.9 in) |
||||
| Machine Length With Handle |
1140 mm (44.9 in) |
1140 mm (44.9 in) |
1140 mm (44.9 in) |
1364 mm (53.7 in) |
1364 mm (53.7 in) |
||||
| Machine Height | 755 mm (29.7 in) |
785 mm (30.9 in) |
765 mm (30.1 in) |
810 mm (31.9 in) |
780 mm (30.7 in) |
||||
| Handle Height (Work) |
1000 mm (39.4 in) |
1000 mm (39.4 in) |
1000 mm (39.4 in) |
1000 mm (39.4 in) |
1000 mm (39.4 in) |
||||
| Handle Height (Transport) | 1180 mm (46.5 in) |
1180 mm (46.5 in) |
1180 mm (46.5 in) |
1180 mm (46.5 in) |
1180 mm (46.5 in) |
||||
| Machine Width | 500 mm (19.7 in) |
600 mm (23.6 in) |
600 mm (23.6 in) |
600 mm (23.6 in) |
600 mm (23.6 in) |
||||
| Engine | |||||||||
| Engine | Hatz 1B20 | Hatz 1 B 30 | Honda GX 270 | Hatz 1B30 | Honda GX 270 | ||||
| Fuel | Diesel | Diesel | Petrol | Diesel | Petrol | ||||
| Engine Output | 3.1 kW (4.2 HP) | 4.5 kW (6.0 HP) | 6.0 kW (8.0 HP) | 4.5 kW (6.0 HP) | 6.0 kW (8.0 HP) | ||||
| At RPM | 3000 | 2900 | 3100 | 2900 | 3100 | ||||
| Fuel Consumption | 0.9 l/h (0.2 gal/h) |
1.3 l/h (0.3 gal/h) |
2.1 l/h (0.6 gal/h) |
1.3 l/h (0.3 gal/h) |
2.1 l/h (0.6 gal/h) |
||||
| Compaction Forces | |||||||||
| Max. Vibration Frequency | 95 Hz (5700 vpm) |
90 Hz (5400 vpm) |
90 Hz (5400 vpm) |
65 Hz (3900 vpm) |
65 Hz (3900 vpm) |
||||
| Max. Centrifugal Force | 25 kN (5620 lbf) |
32 kN (7194 lbf) |
32 kN (7194 lbf) |
42 kN (9442 lbf) |
42 kN (9442 lbf) |
||||
| Working Surface | 630 m²/h (6781 ft²/h) |
1044 m²/h (11 238 ft²/h) |
936 m²/h (10 075 ft²/h) |
900 m²/h (9688 ft²/h) |
1044 m²/h (11 238 ft²/h) |
||||
| Spec. Surface Pressure | 15,2 N/cm² (22 psi) |
16,2 N/cm² (23,4 psi) |
16,2 N/cm² (23,4 psi) |
17,1 N/cm² (24,8 psi) |
17,1 N/cm² (24,8 psi) |
||||
| Miscellaneous | |||||||||
| Hand-Arm Vibrations | < 2.5m/sec² | < 2.5m/sec² | < 2.5m/sec² | < 2.5m/sec² | < 2.5m/sec² | ||||
| Speed | 21 m/min (0.8 mph) |
29 m/min (1.1 mph) |
26 m/min (1.0 mph) |
25m/min (0.9 mph) |
29 m/min (1.1 mph) |
||||
| Fuel Tank | 3.0 l (0.8 gal) | 5.0 l (1.3 gal) | 5,3 l (1,4 gal) | 5.0 l (1.3 gal) | 5,3 l (1,4 gal) | ||||
| Gradeability | 35% | 35% | 35% | 35% | 35% | ||||
| Max. Incline To All Sides | 30° | 30° | 20° | 30° | 20° | ||||
| Water Tank | 9.4 l (2.5 gal) | – | – | – | – | ||||
| Amplitude | 1.5 mm (0.06 in) |
1.2 mm (0.05 in) |
1.2 mm (0.05 in) |
2.5 mm (0.1 in) |
2.5 mm (0.1 in) |
||||
