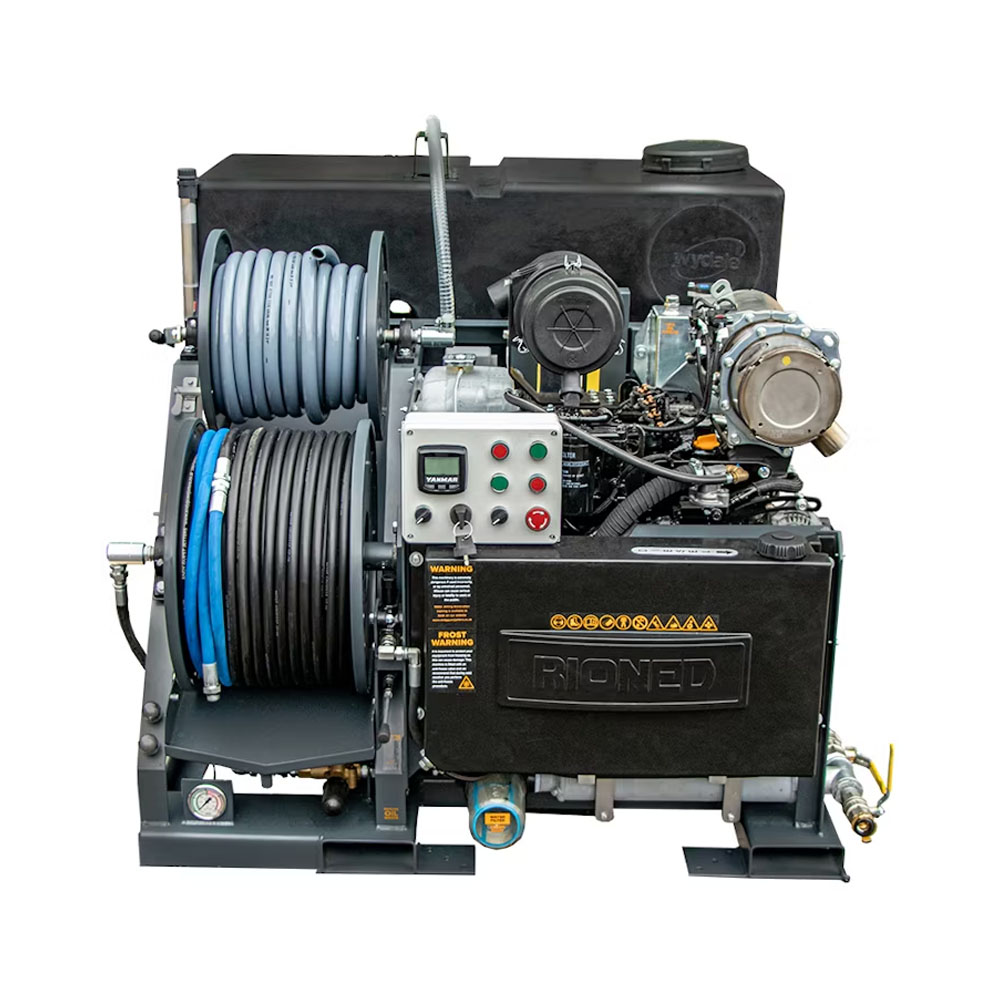

Andy Guest 5 Series Jetting Machine Technical Data
Emissions-Compliant Common Rail Diesel Engine
The 5-Series is powered by an industry-leading Yanmar 4TNV88CC 4-cylinder common rail, direct-injection diesel engine delivering 3000psi @16gpm performance. Current and future emissions standards have been key considerations in its development, with Yanmar’s direct-injection technology reducing emissions while increasing the engine’s fuel economy and power output. A DPF engine (diesel particulate filter) offers unparalleled environmental performance and further minimises the particulate matter in the machine’s exhaust gas, with levels continually monitored by the engine’s assist and reset regeneration functions to ensure optimum jetting performance while it is in use.
Smart Engine Monitoring
Yanmar’s new smart engine technology is standard with the 5-Series water jetter. Enabling operators to accurately monitor the condition of the machine’s 4-cylinder diesel engine, the integrated panel features an interactive LED display providing real-time readings of the engine RPMs, temperatures, pressures and working hours. Advanced machine diagnostics are also displayed on the panel, warning operators of potential malfunctions and improving user safety.
Compact & Lightweight Drain Jetter
The 5-Series drain jetter boasts a compact frame, fitting most 3.5t vans while offering ample space for drain cleaning tools and equipment. A heat exchanger replaces the traditional radiator, keeping the dry weight at 670kg for a larger 650-litre water tank.
Single-Person Drain Cleaning Control
The innovative 5-Channel Andy Guest radio remote enhances control during remote drain jetting. This user-friendly handset features increased bandwidth and reception range for optimal performance in challenging environments. The kit includes a transmitter unit, receiver, charger, and antenna.
Space-Saving Stack Jetter Configuration
Maximise your multipurpose vehicle’s space and payload with the 5-Series stack jetter. This space-saving configuration offers the same drain cleaning power with less than half the size of a conventional van pack. Separate water tank mounting allows for improved weight distribution.
| Specifications | Value |
|---|---|
| Pipework Diameter | Up to 350mm |
| Performance | 3000psi @16gpm (200 bar @ 72 lpm), or 3625psi @ 13gpm (250 bar @ 60 lpm) |
| Water tank | 650 Litres (143 Gallon) |
| Engine | Yanmar 4TNV88C 4-Cylinder Diesel |
| Engine Power | 47HP (35.5kW) |
| HP Pump Type | Triplex High-Pressure Pump |
| Engine Cooling | Water-Cooled |
| Run Dry Protection | Standard |
| Frost Protection | Anti-Freeze Valve |
| HP reel | Hydraulic Drive HP Reel |
| Hose Guidance | Standard |
| Hose | 80 Metres ½” Lightweight Single-Wire Jetting Hose |
| Reel Arrangement | Fixed Hose Reel |
| Filling Hose | 25m |
| Control Box | Yes |
| Pressure Relief System | Unloader Valve |
| Remote control | 5-Channel Radio Remote System (Optional) |
| Construction | Compact Mild Steel Construction, Powder Coated |
| Accessories Included | 2 Specially-Developed Nozzles, User Manual, Leader Hose |
| Approx. Dry Weight | 677kg |
| Approx. Max Weight | 1177kg (with standard 650-litre water tank) |
| Fuel Tank Capacity | 30 litres |
| Base Vehicle Suitability | Ford Transit, Vauxhall Movano, Mercedes Benz Sprinter, VW Crafter, Renault Master, Peugeot Boxer |
| Dimensions (mm) | Dimensions with standard 650L tank: Width – 1370mm (at widest point) Depth – 1610mm Height – 1200mm (including tank air gap) |
| Optional specifications | |
| Tank Capacity Upgrade | 800 Litres |
| HP Pump Upgrade | Upgrade to higher-specification high-pressure pump |
| Hot Water System | Upgrade to hot water system |
| Remote Control | 5-Channel Radio Remote Control |
| Nozzles | Specialist Nozzle Kits |
| Hose Guidance | Hose guidance to guide the high-pressure hose into the pipe to reduce the risk of kinking or fraying. |
| Accessories | Surface Cleaning equipment, Safety Lance and Dry-Shut Lance attachments |
