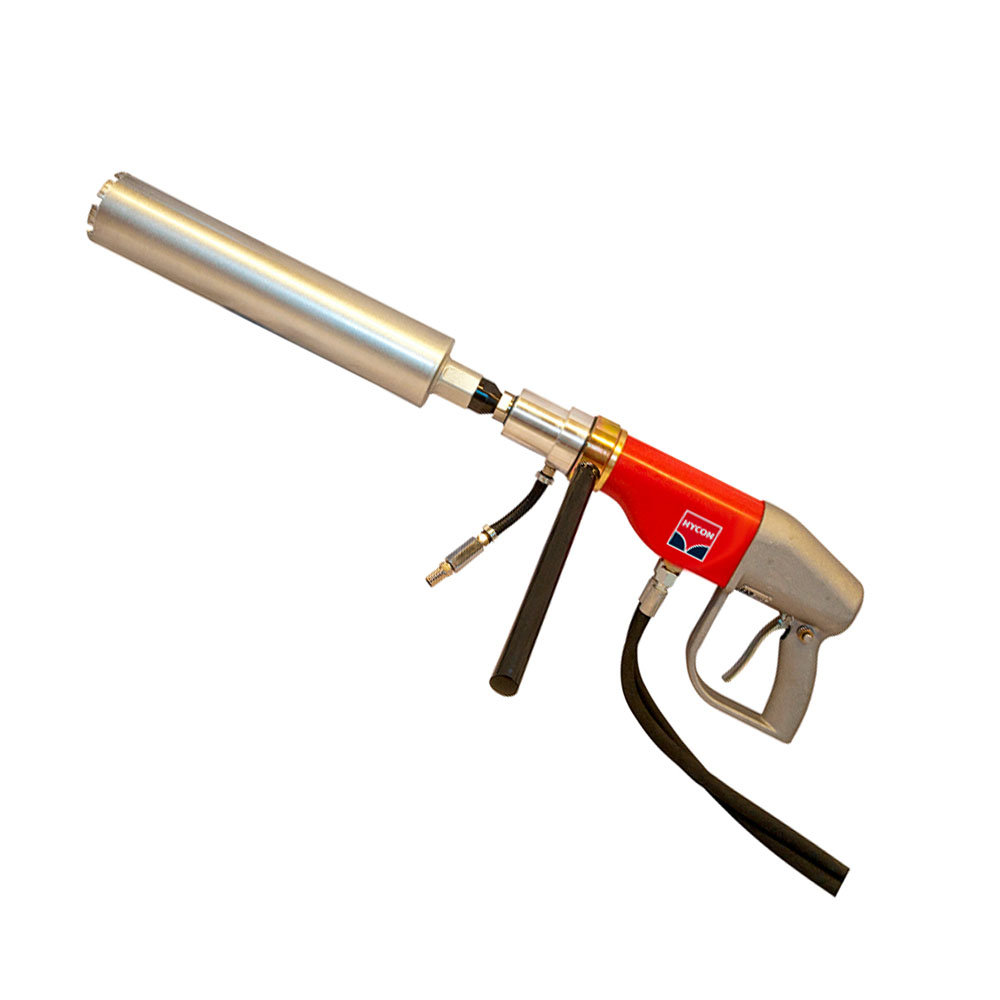

Hycon HCD25-100 Handheld Hydraulic Core Drill Technical Data
The HCD25-100 is extremely easy to use and will drill through any material. There is no need for a drill rig. However, the HCD25-100 fits in a standard drill rig with a 60 mm flange for more demanding jobs.
The core drill has a built-in hydraulic torque limiter, ensuring max torque and no kickback if the core bit jams.
| Specifications | Value |
|---|---|
| Item no. | 3030150 |
| Weight [kg] | 7.6 |
| Corebit diameter Ø [mm] | 25-100 |
| Oil flow [LPM] | 20 |
| Working pressure [bar] | 100 |
| Max pressure [bar] | 172 |
| Rotation max [rpm] | 1500 |
| Sound power level LWa [dB] | 84 |
| Vibration level, 3 axis [m/s2] | < 2.5 |
